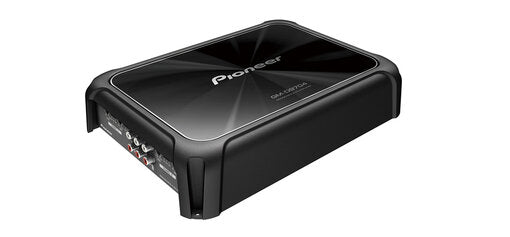

4-Channel 1600W Class-FD Car Amp.
Compact 4 Channel Power
An amplifier shouldn’t take up too much space, especially in your car. This Class-D amps might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.
Specifications
Speaker line input sensorconnect your existing OEM unit without the hassle of add-on adapters
Variable LPFadjust your low-pass filter frequency for greater audio system flexibility
Variable HPFadjust your high-pass filter frequency for greater audio system flexibility
Multi-block Terminalsmoothly connect up to 4 subs for high-power audio output
D-classenjoy first class sound and powerful volume on a versatile system at half the size of other units
Full specifications
Main Features
| Variable LPF | |
| D-class | |
| Channel(s) | 4 / 2 / 1 |
| RCA terminals | yes |
| Speaker Terminals | Block-type |
| LPF | yes |
| HPF | yes |
| Maximum power | 4 x 260W (4Ω) 4 x 400W (2Ω) 1600W Total |
| Continuous power output | 4 x 130W RMS (4Ω) 4 x 200W RMS (2Ω) 4 x 130W RMS (1Ω) 2 x 400W RMS (4Ω bridged) 2 x 260W RMS (2Ω bridged) |
| Frequency response | 10 Hz - 50 Hz |
| Input level control | RCA (0.2V - 6.5V) SP (0.8V - 16V) |
| Distortion | < 0.05 % |
| S/N ratio | > 95 dB |
| Chassis size (W x H x D) | 252 x 60 x 215 mm |
| Crossover Frequency | 40 - 500Hz (-12 dB/oct) Hz |
Audio
| Variable HPF |
Connections
| Multi-block Terminal |
