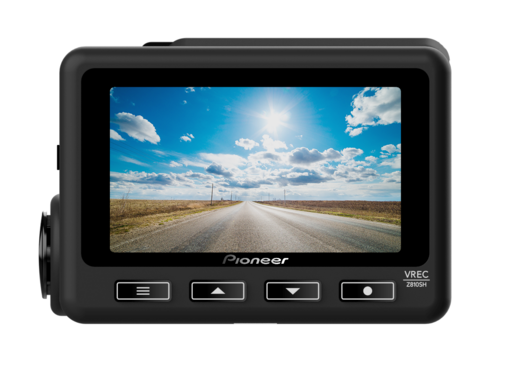

1-Channel (Front) Dash Camera, 4K, 30 fps. 139° Wide Viewing Angle. High Sensitivity utilising a Sony’s CMOS sensor with STARVIS™ technology. Also features GPS, Wi-Fi, Night Time Mode, and 24/7 Security Mode (Hard Wire Kit included in the box).
Your Third Eye On The Road.
Install a Pioneer Dash Camera for peace of mind by protecting you from fraudulent insurance claims by being able to use the recorded footage in the event of an incident, giving you the ability to identify who is at fault quickly and easily. In some countries installing a Dash Camera can even reduce your insurance* premium.
*Country Specific. Please check with your local insurance company.
1-Channel (Front) Dash Camera, 4K High Resolution image, 30 fps. 139° Wide Viewing Angle. High Sensitivity utilising a Sony’s CMOS sensor with STARVIS™ technology. Also features GPS, Wi-Fi, Night Time Mode, and 24/7 Security Mode (Hard Wire Kit included in the box).
VREC-Z810SH enables you to use key features without taking your eyes off the road when driving. Using ADVANCED DRIVER STRIVER SYSTEM, you also receive voice messages when a risk is detected. At a traffic light, when you activate the "STOP & GO" function, you are notified when a vehicle in front of you starts moving. The Voice Comand function of the VREC-Z810SH increases the comfort of driving while protecting you from risks.
You can record a wide range of scenes that are pone to blind spots, such as dangerous driving coming from behind you, or monitoring your vehicle from the front and back**.
**An optional rear camera ND-RC1 is required.
Specifications
Full specifications
Main Features
| 1-Channel Dash Cam | |
| 4K | |
| 139° Wide Viewing Angle | |
| Night Time Mode | |
| SONY "STARVIS" Sensor (Front and Rear) | |
| 24/7 Security Mode | |
| 24/7 Security Mode Recoding Time | 60 sec |
| Parking Mode Recording Times | 60 sec |
| Parking Surveillance Recording: 24/7 Security Mode | 24/7, 365 days per year |
| GPS | |
| Wi-Fi | |
| Voice Guidance | |
| Voice Recognition | |
| Rear Camera | Optional (ND-RC1) |
| Image Quality | Front: 4K (3840 x 2160 p) 2K (2848 x 1600 p) Full HD (1920 x 1080 p) |
| Viewing Angle | Front Camera: Horizontal 115°, Vertical 60°, Diagonal 139° |
| Sensor | SONY "STARVIS" |
| F-Value | Front Camera: F1.8 |
| Frame Rate (fps) | Front Camera: 25 fps/27.5 fps/ 30 fps |
| Camera Type | Front |
| Screen | 3" Full Colour LCD |
| Smartphone App | Pioneer "Dash Camera Connect" app |
| G Sensor | |
| Sound Recording | On / Off |
| Recording Modes | Normal / Event / Photo / Parking |
| Continuous Recording Time | First 30 seconds, last 30 seconds |
| Event Recording Times | First 30 seconds, last 30 seconds |
| Manual Recording Times | First 30 seconds, last 30 seconds |
| Video Recording Format | MOV H.265: 4K, 2K, Full HD H.264: Full HD |
| Still Image Capture | |
| Still Image Format | JPEG |
| Date and Time Setting | |
| Advanced Driver Assistance Systems (ADAS) | Lane Departure Warning System (LDWS) Front Collision Warning System (FCWS) Stop & Go |
| Loop Video Recording | |
| Automatically Start Recording | |
| MicroSD Card Capacity | 32 GB to 256 GB |
| MicroSD Card Compatibility | MicroSDXC / microSDHC memory card class 10 |
| Battery Type | Super capacitor |
| Power Consumption | Approximately 4W (only Front) 6W(Front+Rear) |
| Power Supply Voltage | 12 V / 24 V DC |
| Power Connection Type | Hard wire power cable |
| Power Cable Length | 3.3 m |
| Operating Temperature | -20° to +60° |
| Dimensions (W x H x D) | 93.7 mm x 63 mm x 49.3 mm |
| Weight | 152g (Excluding installation brackets, etc.) |
| Graphic User Interface (GUI) Languages | English / French / German / Spanish / Polish / Russian |
| Accessories (Sold Separately) | Rear Camera (ND-RC1) |
| What's In The Box | Front Camera / Mounting Bracket / Hard Wire Power Cable / Quick Start Guide / Warranty Document / Cleaning Wipe |
