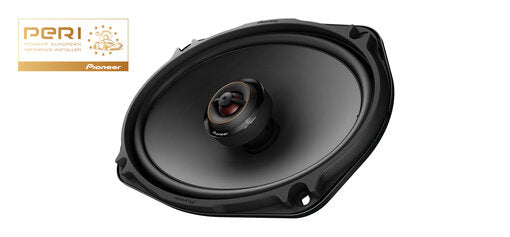

6" x 9 " 2-Way Coaxial Speakers (330 W)

Immerse yourself in open and smooth sound staging.

Discover the Pioneer TS-D Series speakers. Utilising Pioneer's renowned 'Open & Smooth' sound concept, this series offers open-staging, and a smooth transition of driver response making for an immersive experience that truly creates the ultimate in-car sound.

Adding to the sound characteristics, the tweeter on the TS-D Series is designed to swivel on the coaxial, to give you the best direction of sound possible, and easy installation possibilities in the vehicle.



The Aramid Fiber interlaced with IMPPTM cone material is lightweight, rigid and able to cope with vibrations resulting in a sound that is smooth, clear and rich in linear bass. Every model in the Pioneer TS-D Series also offers flexibility when it comes to easy installation.

Every element of the TS-D69F is designed to offer you a high-quality sound experience that is natural, powerful, and truly immersive with exceptional detail.



Upgrade your sound with the Pioneer TS-D69F. This 6" x 9" 2-Way coaxial speaker system delivers up to 330 W Maximum power and 110 W Nominal power.



During Pioneer’s remarkable 80-year history, our loudspeaker technology has achieved the limits of quality sound reproduction, with an uncompromised design that only Pioneer can provide. Pioneer designs, engineers and manufactures each Pioneer loudspeaker in-house to Pioneer’s exact performance and quality standards. That is why we are proud to call our latest Z and D series ‘High Performance’ automotive loudspeakers. Pioneer is passionate in reproducing music in the purest form, and this can only be achieved if the speakers are correctly installed, maximising their performance, in your specific vehicle. To do this, Pioneer has a team of expert professionals across Europe who have the knowledge, experience and passion to be able to install Pioneer’s Z and D series, giving you the best audio experience possible. These Pioneer partners can sell and install the Pioneer Z and D series. Don’t just listen to your music, HEAR MORE.

Specifications

Open & Smooth<sup>TM<sup/>
Open & SmoothTMOPEN and SMOOTH delivers smooth frequency response and an expansive soundstage
PERI Pioneer European Reference Installer
PERI Pioneer European Reference InstallerPioneer has a team of expert professionals across Europe who have the knowledge, experience and passion to be able to sell and install the Pioneer’s Z and D series.
View all specifications

Full specifications

Main Features

Size 6" x 9"
Maximum power 330 W
Nominal input power 110 W
Frequency response 32 - 42.000
Sensitivity 87 dB
Impedance 4 Ω
Crossover Frequency 3500 Hz
Mounting Depth 73 mm
Cut-out Hole 153 mm x 222 mm
Woofer material Aramid Fiber interlaced IMPP™ cone
Voice Coil type Copper Round Wire 2-Layer
Voice Coil bobbin type Glass Imide
Lowest resonance frequency 55 Hz
Tweeter size 26 mm
Tweeter material Aluminium Soft Dome
Magnets Woofer: Ferrite
Tweeter: Neodymium
Weight 1.12 kg
