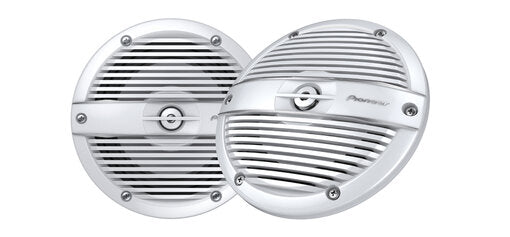

Marine Grade ME-Series 2-Way Coaxial Speaker. (250 W)

A New Wave.

ME-Series Marine Entertainment Combining Pioneer Sound Quality with All-Weather Durability.



Pioneer's ME-series marine speakers are protected from the effects of sun and water exposure, meeting both IPX7 & ASTM D4329 to achieve all-weather reliability.



Utilising a Mica reinforced IMPP(TM) monocoque cone and a butyl rubber surround, they are constructed using advanced in-mould bonding techniques, meaning they have superior water resistance whilst maintaining high quality and a powerful sound.



Internally, a symmetrical motor design combined with high strength suspension optimises stability, linearity and clear, low distortion sound reproduction.



For the most natural sound, they also feature a lightweight polyimide (PI) tweeter diaphragm and uniquely shaped wave guide to provide natural, clear vocals with wide dispersion. Great for a really natural wide sound area.



The TS-ME650FC comes with a white pearlescent classic contemporary grill, that can integrate seamlessly into any marine interior or cabin design.



If you want to personalise and add an extra touch of colour, Pioneer created the optional UD-ME650LED RGB LED illumination light kit, sold separately, that can illuminate the colour of the woofer to any colour you like.



Pioneer's TS-ME650FC ME-Series speakers are 250 W Max. / 75 Continuous Power Handling (RMS), and are a perfect match with the Pioneer ME-series amplifiers and ME-series subwoofers.

Specifications

IPX7
IPX7This Pioneer product achieved a rating of IPX7, signifying this product is water resistant and splash resistant at a submerged depth of up to 1 meter for a duration of up to 30 minutes when installed properly.
View all specifications

Full specifications

Main Features

IPX7
Size 16.5cm
Type 2-Way Coaxial System
Maximum power 250 W
Continuous power output 75 W
Frequency response 34 Hz to 23 kHz
Sensitivity 88 dB (1 W/1 m) dB
Impedance 4 Ω
Mounting Depth 60 mm
Woofer Cut-Out Hole Φ127 mm
Woofer material PP
Surround Trex plane
Voice Coil type Copper
Voice Coil bobbin type Polyimide film
Terminals FASTON Type
Magnets Ferrite
Tweeter Type Dome
2-way Coaxial
Speaker Grill
Weight 0.96 kg
Dimensions Φ175 x 86 mm
Illumination Optional UD-ME650LED. Sold Separately

Other

Reliability Waterproof IPX7, IPX6
UV ASTM D4329
