• TS-WX140DA

TS-WX140DA

€0.00

Pin It
Back to Subwoofers Previous Product

Space Saving Active Subwoofer with built-in Class-D Amplifier utilising DIGITAL BASS CONTROL for DEEP, NATURAL and DYNAMIC controlled bass. Easy to install thanks to its small footprint. (170 W)

Powerful Bass, without losing space.

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.



Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

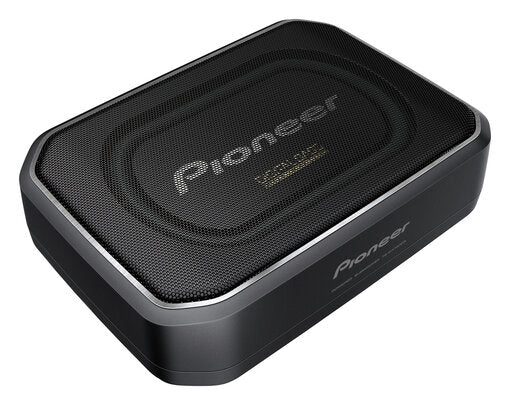

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.

Specifications

EV Optimized
EV OptimizedThis compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.
CarSoundFit App
CarSoundFit App Car sound simulator application for an improved in-car sound experience
DIGITAL BASS CONTROL
DIGITAL BASS CONTROLSelectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.
View all specifications

Full specifications

Main Features

EV Optimized
CarSoundFit App
DIGITAL BASS CONTROL
Size 20 cm
Maximum power 170 W
Continuous power output 50 W
Frequency response DEEP Bass Mode: 20 - 200 Hz
NATURAL Bass Mode: 40 - 200 Hz
DYNAMIC Bass Mode: 40 - 160 Hz
Sensitivity DEEP Bass Mode: 95 dB
NATURAL Bass Mode: 98 dB
DYNAMIC Bass Mode: 100 dB
Woofer material Aluminium
Surround Urethane
Voice Coil type Copper Round Wire 4-Layer
Voice Coil bobbin type Glass Imide
Magnets Strontium
Weight 3,1 kg
Dimensions (W x H x D) 280 x 200 x 70
