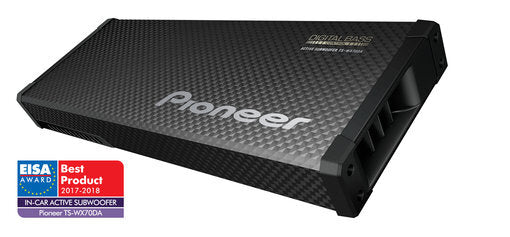

Award winning subwoofer
Space saving Class-D Active Subwoofer integrating DIGITAL BASS CONTROL for DEEP, DYNAMIC controlled bass, and easy installation (200W).
Hearing is Believing
Pioneer launches a new generation Class-D amplified subwoofer integrating DIGITAL BASS CONTROL. This unique feature generates two selectable Bass Modes: DEEP and DYNAMIC, producing 200 Watts of strong, rich, deep bass that you can feel, without giving up your boot space. Users can easily control and customise the two bass modes directly from the supplied wired remote control.
Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX70DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals.
Specifications
View all specificationsFull specifications
Main Features
Amplified Subwoofer | |
Space Saving | |
Impedance | 4 Ω |
Frequency response | • DEEP Bass Mode: 20 - 250 Hz • DYNAMIC Bass Mode: 40 - 250 |
Sensitivity | • DEEP Bass Mode: 104 dB • DYNAMIC Bass Mode: 110 dB |
Maximum power | (100W x 2) 200 W |
Nominal input power | (50W x 2) 100 W |
Built-in variable LPF (50-125 Hz, -12dB/oct.) | Yes (variable) |
Recommended sealed enclosure (Litres) | 13,5 litres |
Dimensions | 850 x 97 x 323 mm |
Magnets | strontium |
Weight | (accerssory parts included) 10,4 kg |
Woofer Size | 2 x 16 cm |
