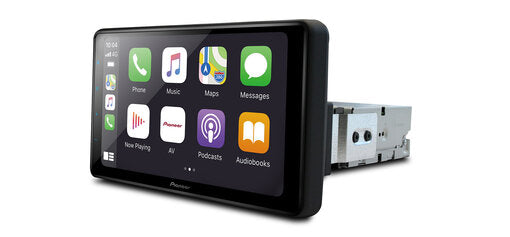

Thanks to its modular structure, the 9-inch SPH-EVO93DAB-UNI can be fitted to cars where this was previously impossible. 9" Capacitive touchscreen modular multimedia player with easy smartphone connectivity supporting Apple Carplay wireless, Android Auto wired, voice commands via Alexa built-in, DAB/DAB+ Digital Radio, CarAVAssist app, Hybrid Radio, Spotify, Waze, Bluetooth and a 13-band GEQ.
With the ‘floating’ or ‘tablet’ style installation of the SPH-EVO93DAB-UNI modular receivers, you can install these new products into many vehicles that come with a standard 1-DIN opening.
Specifications
Wi-Fi®With built-in Wi-Fi® you can enjoy wireless connectivity specifically designed to support a cable free data connection between your smartphone and the receiver.
Apple CarPlayIs the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
WazeWaze is a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
Hybrid RadioWhen you leave the broadcast area of your favourite DAB+ or FM Radio station, internet streaming becomes available automatically. Hybrid Radio makes sure that you can receive your favourite radio station everywhere! At the same time, metadata that is available through internet connection can be displayed also whilst tuned to FM.
DAB+Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
Bluetooth®Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
9" Capacitive TouchscreenA fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
Made for iPod / iPhoneDirectly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
HDMI InputConnect any HDMI equipment to the Pioneer device for optimal video and audio connectivity.
Dual Camera Input Dual camera inputs enable you to add a reverse (rear facing) camera and front facing camera that can assist with front and rear visibility, towing, or parking.
Siri Eyes Freemake use of your iPhone's Siri functionality through your unit's external microphone and the speakers of your vehicle
Compatible with AndroidConnect and listen to music stored on your device without the need for an app
SpotifyWith Spotify, just connect your smartphone to comfortably browse your favourite playlists, albums, tracks and artists using your headunit controls.
Display IlluminationMatch the display and key illumination to your vehicle's interior lighting with a range of over 210.000 colours and endless colour combinations.
USB InputConnect any device with an USB interface cable to charge your device or listen to clean, clear sound.
FLACEnjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
13-band Graphical EQAdjust your audio output in detail for a music experience tailored to your preferences.
Modular designA touchscreen with separated control unit allows flexible installation.
Full specifications
Main Features
| Wi-Fi® | |
| Apple CarPlay | |
| Apple CarPlay Connection | Wireless connection or USB connection |
| Android Auto | |
| Waze | Yes. (via Apple CarPlay /Android Auto) |
| DAB+ | |
| Digital Radio Tick Mark Approved product | |
| Bluetooth® | |
| 9" Capacitive Touchscreen | |
| HDMI Input | |
| Dual Camera Input | |
| Spotify | |
| USB Input | |
| Modular design | |
| Navigation Ready | Yes. (via AVIC-F160-2 & AVIC-F260-2, sold separately) |
| FM Radio | |
| Screen | 9" WXGA Capacitive Multi-touchscreen |
| Cellular telephone auto muting | |
| Installation Type | Modular and 1-DIN |
| Front Panel | Multi-colour display and screen |
| Button Illumination | RGB Colour Customisation (210,000 Colours) |
| Plays | • Your iPod, iPhone, Android Smartphone • Bluetooth audio Via USB: • MP3, WMA, AAC, WAV and FLAC audio files • H.264, MKV, FLV and MPEG4 video files in Full HD • Mpeg2, DivX video files • JPEG image files |
| Accessories | Included: • 1 x USB extension cable • 1 x External Bluetooth mic Optional: • CA-AN-DAB.001 (DAB antenna) • CD-RGB150E (1.5m Extension Cable) • CD-MC20 (Auto EQ microphone) • ND-BC8 (Reverse camera) |
| USB Input | Rear USB(-C) |
Connections
| Hybrid Radio | • Metadata for every Radio Source • Recommended Radio Station • Network Following (DAB+ / FM / IP Radio) |
| Aux-in | 1 rear AV Aux-In |
| Video output | Analog |
| Hard Wired Remote Ready | |
| ISO connector | |
| RGB input | 1 |
| High Voltage Output | 4V |
Apple Compatibility
| Made for iPod / iPhone | |
| Siri Eyes Free | |
| Works with iPhone |
Android Compatibility
| Compatible with Android |
Screen Features
| Display Illumination | yes |
Audio
| FLAC | |
| 13-band Graphical EQ | |
| MOSFET 50 W x 4 Amplifier | |
| RCA Pre-Outs | 3 (Front, Rear, Subwoofer) 5V |
| 3-Way Network Mode | |
| Source Level Adjuster | |
| High Pass Filter | |
| Low Pass Filter | |
| Loudness | |
| Graphic Equaliser | 13-band |
| Auto EQ (Equaliser) | |
| Time Alignment | |
| Subwoofer Control | |
| Advanced Sound Retriever |
Bluetooth
| Pioneer Bluetooth | |
| Additional Bluetooth Features | • Audio streaming • Automatic Phone book Transfer (5 x 1000 contacts) • 2 Phones full time connect • Autopairing via USB |
| Compatibility | HFP/A2DP/AVRCP |
| Hands-free calls |
Tuner Features
| DAB+ Digital | |
| RDS FM Radio |
