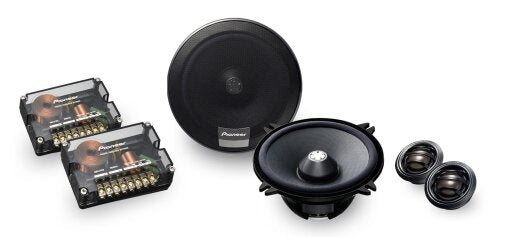

13cm Separate 2-way Reference Series Speaker System
High definition, competition-grade power.
This 13cm separate speaker system is part of the Pioneer Reference Series that was designed to deliver precise audio quality with competition-grade power. Improvements include better sound performance and better woofer installation.
The tweeter’s back chamber is enlarged, allowing lower frequency response than before. Usage of PCOCC wire, consisting of a very pure type of copper, offers a cleaner and
more detailed sound. Furthermore the tweeter now features a black chassis.
For better quality and power handling in the lower range, a progressive damper is used in the new subwoofer. An inside magnet further enhances sound quality and also improves installation.
These improvements create a high-definition, ultra low distortion sound that, with stereoscopic and expansive staging, is unrivalled in its acuity.
• Also available as a 17cm component system.
Specifications
Full specifications
Main Features
| Sensitivity | 86 dB |
| Lowest resonance frequency | 50 Hz |
| Maximum power | 150 |
| Nominal input power | 30 W |
| 2 way component | |
| Woofer material | Multi-Layer IMX Aramid Fibre with IMPP™ composite cone woofer |
| Tweeter size | 28 mm |
| Tweeter material | Soft dome |
| Tweeter fitting kits included | Surface mount slant spacer, flash mountadapter and invisible mount adapter |
| Dimensions | Without grille: 149 x 67 / With grille: 155 x 80 mm |
| Magnets | Neodymium |
| Size | 13 cm |
| Weight | •Woofer: 0.87 kg • Tweeter: 0.1 kg • Network: 0.52 kg kg |
| Impedance | 4 Ω |
| Cut-out Hole | 123 mm |
| Frequency response | 30 - 35,000 |
| Mounting Depth | 57,3 mm |
Thiele/Small Parameters
| S.P.L. [dB] | 86 (± 1,5) |
