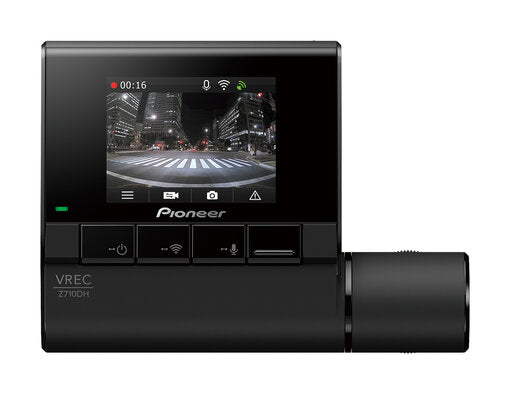

1-Channel (Front) Dash Camera, Full HD, 27.5 fps. 160° Wide Viewing Angle. High Sensitivity utilising a Sony’s CMOS sensor with STARVIS™ technology
Your Third Eye On The Road.
Install a Pioneer Dash Camera for peace of mind by protecting you from fraudulent insurance claims by being able to use the recorded footage in the event of an incident, giving you the ability to identify who is at fault quickly and easily. In some countries installing a Dash Camera can even reduce your insurance* premium.
*Country Specific. Please check with your local insurance company.
1-Channel (Front) Dash Camera, Full HD, 27.5 fps. 160° Wide Viewing Angle. High Sensitivity utilising a Sony’s CMOS sensor with STARVIS™ technology. Also features GPS, Wi-Fi, Night Time Mode, and 24/7 Security Mode (Hard Wire Kit included in the box).
You can record a wide range of scenes that are pone to blind spots, such as dangerous driving coming from behind you, or monitoring your vehicle from the front and back**.
**An optional rear camera ND-RC1 is required.
Specifications
1-Channel Dash CamFront Dash Camera, recording the front.
Full HDIn addition to installing a CMOS sensor that realises high sensitivity, this product records in Full HD (1920 x 1080p) with about 2 million pixels of high resolution so you can record clear high-quality characters such as a license plate, in the day or night.
160° Wide Viewing AngleRecord larger amounts of information with less blind spots, such as a motorcycle passing from the left or right or a pedestrian or bicycle jumping out.
Night Time ModeWhen driving on roads or in tunnels, the license plate and surrounding conditions are clearly recorded. By adopting the SONY CMOS sensor "STARVIS ™" this product is suitable for night time driving.
SONY "STARVIS" Sensor (Front and Rear)A SONY CMOS sensor "STARVIS™*" is used giving you detailed image and video capture, especially at night.*Front and Rear camera on Pioneer VREC-DZ700DC.
Wide Dynamic Range (WDR)Enhances the light and dark dynamic range and corrects the images, compensating for "overexposure" and "underexposure" that occurs when the brightness changes suddenly, such as at night, or when entering or exiting a tunnel.
24/7 Security ModeAdditional to Parking Mode, 24/7 Security Mode* will automatically start to record when an impact is detected, after the Dash Camera internal battery goes empty, allowing you to monitor your vehicle 24/7, 365 days a year. *Security Mode requires a direct connection to the vehicles power supply using Pioneer's Hard Wire Kit.
GPSAccurately record important information such as your current position, vehicle speed, direction of travel and time.
Wi-FiBuilt-in Wi-Fi to connect your smartphone via an exclusive Pioneer Dash Camera app*'. Check recorded videos or set up the Dash Camera on the screen of a compatible iPhone or Android™ smartphone.* Compatible smartphone required. App availability is depending on your country.
TailgatingWhen the distance between your car and the car behind you becomes too small, the dashcam starts to beep and record. (Optional rear camera ND-RC1 is necessary to use this function)
Full specifications
Main Features
| 1-Channel Dash Cam | |
| Full HD | |
| 160° Wide Viewing Angle | |
| Night Time Mode | |
| SONY "STARVIS" Sensor (Front and Rear) | |
| Wide Dynamic Range (WDR) | |
| 24/7 Security Mode | |
| 24/7 Security Mode Recoding Time | 60 sec |
| Parking Mode | |
| Parking Mode Recording Times | 20 + 20 sec |
| Parking Surveillance Recording: 24/7 Security Mode | 24/7, 365 days per year |
| GPS | |
| Wi-Fi | |
| Tailgating | |
| Wireless Connection | |
| Image Quality | Front: Full HD (1920 x 1080 p) |
| Viewing Angle | Front Camera: Horizontal 130°, Vertical 68°, Diagonal 160° |
| Sensor | SONY "STARVIS" |
| F-Value | F2.0 |
| Frame Rate (fps) | 27.5 fps |
| Image Correction | WDR |
| Camera Type | Front |
| Camera Swivel Mechanism | |
| Polarised Filter | Optional (AD-PLF100) |
| Rear Camera | Optional (ND-RC1) |
| Screen | 2" Full Colour LCD |
| Smartphone App | Pioneer "Dash Camera Interface" app |
| G Sensor | |
| Sound Recording | On / Off |
| Recording Modes | Continuous / Event / Manual |
| Continuous Recording Time | First 20 seconds, last 20 seconds |
| Event Recording Times | First 20 seconds, last 20 seconds |
| Manual Recording Times | First 20 seconds, last 20 seconds |
| Video Recording Format | MP4（H.264、MP3） |
| Still Image Capture | |
| Still Image Format | JPEG |
| Date and Time Setting | |
| Loop Video Recording | |
| Automatically Start Recording | |
| MicroSD Card Capacity | 8 GB to 128 GB |
| MicroSD Card Compatibility | MicroSDXC / microSDHC memory card class 10 |
| MicroSD Card Format Warning | |
| MicroSD Card Format Free | |
| Battery Type | Super capacitor |
| Power Consumption | Approximately 5 W |
| Power Supply Voltage | 12 V DC |
| Power Connection Type | Hard wire power cable |
| Power Cable Length | 5 m |
| Operating Temperature | -10° to +60° |
| Dimensions (W x H x D) | 106.1 mm x 78 mm x 46.7 mm |
| Weight | 145g (Excluding installation brackets, etc.) |
| Graphic User Interface (GUI) Languages | English / French / German / Russian / Spanish / Polish |
| Accessories (Sold Separately) | Polarised filter (AD-PLF100) Rear Camera (ND-RC1) |
| What's In The Box | Front Camera / Mounting Bracket / Hard Wire Power Cable / Quick Start Guide / Warranty Document / Cleaning Wipe |
