AVIC-Z1000D11-CHU
€0.00
Related

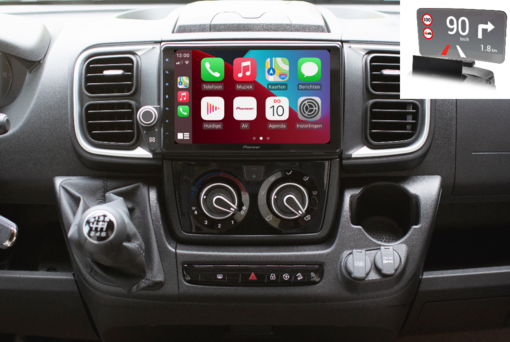

Wi-Fi enabled high-end built-in navigation AV system with a large 9-inch 24 bit True Colour Capacitive Multi-touchscreen. Perfectly integrated to your Fiat Ducato 8 (°) with unique SDA-HU100 Head-Up Display for your driving comfort and safety. Enjoy Apple CarPlay wireless, Android Auto, Waze, Bluetooth and DAB+ Digital Radio (Digital Radio Tick Mark approved). Dual USB and Dual camera input is also included, as well as superior audio and video performance.
Campervan dedicated next generation navigation perfectly integrated to your Fiat Ducato 8 (°).
Pioneer's AVIC-Z1000DAB-C not only includes detailed built-in European HERE navigation maps dedicated for Campervans, it now takes smartphone connectivity to a whole new level, thanks to built-in Wi-Fi. Forget messy cables hanging across your dashboard, enjoy Apple CarPlay wireless, the Pioneer way. Add to that, Android users can enjoy Android Auto. Waze (via Apple CarPlay, Android Auto or Wireless Mirroring) and WebLink can also be enjoyed from modern smartphones, as well as DAB+ Digital Radio and Bluetooth wireless. Steering wheel control is also supported.
(°) Solutions are compatible with the Fiat Ducato III (Type F8 after 2021) Left Hand Drive open dash version only.
Specifications
CamperVan NavigationNavigate safely and conveniently across Europe thanks to detailed built-in navigation maps dedicated for Campervan users.
HERE® MapsA comprehensive map database from HERE® covering Europe, enabling users to route to millions of destinations.AVIC models ensures that you can have the most recent map database thanks to Latest Map Guarantee.
PromobilA collection of 20 000 Camper Van Service areas Thoughout Europe with Detailed descriptions in German, French and English and extenisve details.
TMC (Traffic Message Channel)Stay informed of traffic and travel information delivered directly to your navigation system.
Wi-Fi®With built-in Wi-Fi® you can enjoy wireless connectivity specifically designed to support a cable free data connection between your smartphone and the receiver.
Apple CarPlayIs the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
Android AutoExtends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
Wireless MirroringIs designed to mirror your Android phone via Wi-Fi on the headunit screen. Wireless Mirroring operations and procedures vary depending on the connected mobile device. Refer to the instruction manual that came with your mobile device.Wi-Fi Certified Miracast™ requires a compatible device. More information is available at www.wi-fi.org/discover-wi-fi/miracast.
WebLinkThe new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone/ tablet and the cloud.
WazeWaze is a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
DAB+Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
Digital Radio Tick Mark Approved productManufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
Bluetooth®Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
9" Capacitive TouchscreenA fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
MechafreeThis product is designed for modern digital music formats.
Made for iPod / iPhoneDirectly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
Dual USBPlug in your passenger's music whilst leaving your own device connected, practically doubling your music. Plug in, charge and control your USB connected device. The possibilities are endless.
Dual Camera Input Dual camera inputs enable you to add a reverse (rear facing) camera and front facing camera that can assist with front and rear visibility, towing, or parking.
FLACEnjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
13-band Graphical EQAdjust your audio output in detail for a music experience tailored to your preferences.
Multi colour illuminationMatch the display and key illumination to your vehicle's interior lighting with a range of endless colour combinations.
Full specifications
Main Features
| CamperVan Navigation | |
| HERE® Maps | |
| Promobil | |
| TMC (Traffic Message Channel) | |
| Wi-Fi® | |
| Apple CarPlay | |
| Apple CarPlay Connection | Yes. (Wireless connection or wired USB connection) |
| Android Auto | |
| Wireless Mirroring | Yes (For compatible Android devices) |
| WebLink | |
| Waze | Yes. (via Apple CarPlay /Android Auto / Wireless Mirroring) |
| DAB+ | |
| Digital Radio Tick Mark Approved product | |
| Bluetooth® | |
| 9" Capacitive Touchscreen | |
| Mechafree | |
| Dual Camera Input | |
| Multi colour illumination | |
| Simultaneous Navigation and AV Entertainment | |
| FM Radio | |
| DVD Region Code | 2 |
| USB Input | 2 |
| Camera Input | 2 |
| Screen Size | 9" |
| Plays |
Via USB / SD: • MP3, WMA, AAC, WAV and FLAC audio files • H.264, MKV, FLV and MPEG4 video files in Full HD • Mpeg2, DivX video files • JPEG image files |
| Customisable Key and Display Illumination | |
| Dual Zone Entertainment | |
| Installation Type | 2-Din Body, with larger display |
| Accessories | 2 USB extension cables 1 External Bluetooth microphone 1 GPS Antenna |
| Menu Languages |
17 Languages: Czech Danish, Dutch English (UK) Finnish, French German, Greek Hungarian Italian Norwegian Polish, Portuguese Romanian Spanish, Swedish Turkish |
Apple Compatibility
| Made for iPod / iPhone | |
| Works with iPhone | |
| Supported Functions | • Battery charging • Music playback • Siri EYes Free |
Connections
| Dual USB | |
| Aux-in | 1 rear AV Aux-In |
| SD Card Input | |
| RCA AV Input | 2 |
| RCA AV Rear Output | |
| Portable Device Connectivity | Yes via mini-jack RCA Cable (not included) |
| Hard Wired Remote Ready | |
| Hand Held Remote Control | Yes, via optional CD-R33 |
| CAN Bus | UART connection for: HUD support |
Audio
| FLAC | |
| 13-band Graphical EQ | |
| MOSFET 50 W x 4 Amplifier | |
| Graphic Equaliser | 13-band |
| Network Mode | 3-Way Network Mode |
| Listening Position Selector | |
| Auto EQ (Equaliser) | |
| Auto TA (Time Alignment) | |
| High Pass Filter | |
| Low Pass Filter | |
| Subwoofer Control | |
| RCA Pre-Outs | 3. (Front, rear and subwoofer) |
| High Voltage Output (4Volt) | |
| Advanced Sound Retriever | |
| Advanced Audio Features | High-quality power line capacitor for stable bass |
| Rotary Volume Control | |
| Steering wheel control |
Android Compatibility
| Compatible with Android | |
| Quick Charge for Android |
Navigation Features
| Map Provider | HERE® |
| Map Type | Pre-installed on built-in flash memory |
| Points of Interest (POI) | 10 million |
| Promobil Camper POI's | 20 000 |
| 3D Cities | |
| 3D Landmarks | |
| Text-to-Speech Voice Guidance | |
| TMC (Traffic Message Channel) | Yes built-in RDS-TMC |
| TMC Coverage | Andorra Austria Belgium Czech Republic Denmark France (Michelin) Germany Italy Netherlands Spain Switzerland UK (INRIX) |
| Navigation Coverage |
45 countries and 11 million kilometres of road: Andorra, Austria Belgium, Bulgaria Croatia, Czech Republic Denmark Estonia Finland, France Germany, Gibraltar, Greece Hungary Iceland, Ireland, Italy Latvia, Liechtenstein, Lithuania, Luxembourg Malta, Monaco Netherlands, Norway Poland, Portugal Romania San Marino, Slovakia, Slovenia, Spain, Sweden, Switzerland Turkey United Kingdom (incl. Northern Ireland), Ukraine Vatican City Additional connector roads for Albania, Belarus, Bosnia and Herzegovina, Macedonia, Moldavia, Serbia, Montenegro. |
| Voice Guidance Languages |
29 languages: Arabic Bulgarian Czech Danish, Dutch English (UK) Estonian Finnish, Flemish, French German, Greek Hebrew, Hungarian Italian Latvian, Lithuanian Norwegian Polish, Portuguese Romanian, Russian Serbian, Slovakian, Slovenian, Spanish, Swedish Turkish Ukrainian |
Bluetooth
| Voice Recognition | |
| Music Streaming | |
| Additional Bluetooth Features | Music streaming via A2DP & AVRCP 1.6 Phone book transfer 800 entries for each user (20 phones max.) Siri |
