• AVIC-Z1000D33-CHU

AVIC-Z1000D33-CHU

€0.00

Pin It
Back to Navigation Multimedia Receivers Next Product

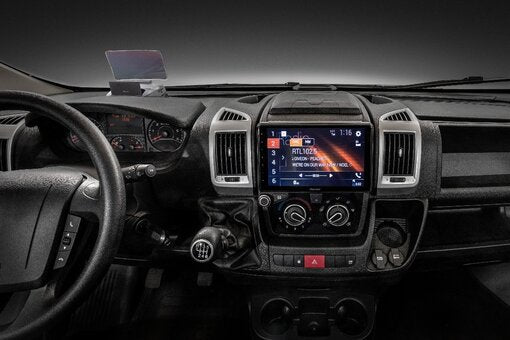

Wi-Fi enabled high-end built-in navigation AV system with a large 9-inch 24 bit True Colour Capacitive Multi-touchscreen. Perfectly integrated to your Fiat Ducato 7 (°) with unique SDA-HU100 Head-Up Display for your driving comfort and safety. Enjoy Apple CarPlay wireless, Android Auto, Waze, Bluetooth and DAB+ Digital Radio (Digital Radio Tick Mark approved). Dual USB and Dual camera input is also included, as well as superior audio and video performance.

Campervan dedicated next generation navigation perfectly integrated to your Fiat Ducato 7 (°).

Pioneer's AVIC-Z1000DAB-C not only includes detailed built-in European HERE navigation maps dedicated for Campervans, it now takes smartphone connectivity to a whole new level, thanks to built-in Wi-Fi. Forget messy cables hanging across your dashboard, enjoy Apple CarPlay wireless, the Pioneer way. Add to that, Android users can enjoy Android Auto. Waze (via Apple CarPlay, Android Auto or Wireless Mirroring) and WebLink can also be enjoyed from modern smartphones, as well as DAB+ Digital Radio and Bluetooth wireless. Steering wheel control is also supported.



(°) Solutions are compatible with the Fiat Ducato 7 (after 2014) Left Hand Drive open dash version only.

Specifications

CamperVan Navigation
CamperVan NavigationNavigate safely and conveniently across Europe thanks to detailed built-in navigation maps dedicated for Campervan users.
HERE<sup>®</sup> Maps
HERE® MapsA comprehensive map database from HERE® covering Europe, enabling users to route to millions of destinations.AVIC models ensures that you can have the most recent map database thanks to Latest Map Guarantee.
Promobil
PromobilA collection of 20 000 Camper Van Service areas Thoughout Europe  with  Detailed descriptions in German, French and English and extenisve details.
TMC (Traffic Message Channel)
TMC (Traffic Message Channel)Stay informed of traffic and travel information delivered directly to your navigation system.
Wi-Fi<sup>®</sup>
Wi-Fi®With built-in Wi-Fi® you can enjoy wireless connectivity specifically designed to support a cable free data connection between your smartphone and the receiver.
Apple CarPlay
Apple CarPlayIs the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
Android Auto
Android AutoExtends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
Wireless Mirroring
Wireless MirroringIs designed to mirror your Android phone via Wi-Fi on the headunit screen. Wireless Mirroring operations and procedures vary depending on the connected mobile device. Refer to the instruction manual that came with your mobile device.Wi-Fi Certified Miracast™ requires a compatible device. More information is available at www.wi-fi.org/discover-wi-fi/miracast.
WebLink
WebLinkThe new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone/ tablet and the cloud.
Waze
WazeWaze is a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
DAB+
DAB+Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
Digital Radio Tick Mark Approved product
Digital Radio Tick Mark Approved productManufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
Bluetooth<sup>®</sup>
Bluetooth®Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
9" Capacitive Touchscreen
9" Capacitive TouchscreenA fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
Mechafree
MechafreeThis product is designed for modern digital music formats.
Made for iPod / iPhone
Made for iPod / iPhoneDirectly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
Dual USB
Dual USBPlug in your passenger's music whilst leaving your own device connected, practically doubling your music. Plug in, charge and control your USB connected device. The possibilities are endless.
Dual Camera Input
Dual Camera Input Dual camera inputs enable you to add a reverse (rear facing) camera and front facing camera that can assist with front and rear visibility, towing, or parking.
FLAC
FLACEnjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
13-band Graphical EQ
13-band Graphical EQAdjust your audio output in detail for a music experience tailored to your preferences.
Multi colour illumination
Multi colour illuminationMatch the display and key illumination to your vehicle's interior lighting with a range of endless colour combinations.
View all specifications

Full specifications

Main Features

CamperVan Navigation
HERE® Maps
Promobil
TMC (Traffic Message Channel)
Wi-Fi®
Apple CarPlay
Apple CarPlay Connection Yes. (Wireless connection or wired USB connection)
Android Auto
Wireless Mirroring Yes (For compatible Android devices)
WebLink
Waze Yes. (via Apple CarPlay /Android Auto / Wireless Mirroring)
DAB+
Digital Radio Tick Mark Approved product
Bluetooth®
9" Capacitive Touchscreen
Mechafree
Dual Camera Input
Multi colour illumination
Simultaneous Navigation and AV Entertainment
FM Radio
DVD Region Code 2
USB Input 2
Camera Input 2
Screen Size 9"
Plays Via USB / SD:
• MP3, WMA, AAC, WAV and FLAC audio files
• H.264, MKV, FLV and MPEG4 video files in Full HD
• Mpeg2, DivX video files
• JPEG image files
Customisable Key and Display Illumination
Dual Zone Entertainment
Installation Type 2-Din Body, with larger display
Accessories 2 USB extension cables
1 External Bluetooth microphone
1 GPS Antenna
Menu Languages 17 Languages:
Czech
Danish, Dutch
English (UK)
Finnish, French
German, Greek
Hungarian
Italian
Norwegian
Polish, Portuguese
Romanian
Spanish, Swedish
Turkish

Apple Compatibility

Made for iPod / iPhone
Works with iPhone
Supported Functions • Battery charging
• Music playback
• Siri EYes Free

Connections

Dual USB
Aux-in 1 rear AV Aux-In
SD Card Input
RCA AV Input 2
RCA AV Rear Output
Portable Device Connectivity Yes via mini-jack RCA Cable (not included)
Hard Wired Remote Ready
Hand Held Remote Control Yes, via optional CD-R33
CAN Bus UART connection for:
HUD support

Audio

FLAC
13-band Graphical EQ
MOSFET 50 W x 4 Amplifier
Graphic Equaliser 13-band
Network Mode 3-Way Network Mode
Listening Position Selector
Auto EQ (Equaliser)
Auto TA (Time Alignment)
High Pass Filter
Low Pass Filter
Subwoofer Control
RCA Pre-Outs 3. (Front, rear and subwoofer)
High Voltage Output (4Volt)
Advanced Sound Retriever
Advanced Audio Features High-quality power line capacitor for stable bass
Rotary Volume Control
Steering wheel control

Android Compatibility

Compatible with Android
Quick Charge for Android

Navigation Features

Map Provider HERE®
Map Type Pre-installed on built-in flash memory
Points of Interest (POI) 10 million
Promobil Camper POI's 20 000
3D Cities
3D Landmarks
Text-to-Speech Voice Guidance
TMC (Traffic Message Channel) Yes built-in RDS-TMC
TMC Coverage Andorra
Austria
Belgium
Czech Republic
Denmark
France (Michelin)
Germany
Italy
Netherlands
Spain
Switzerland
UK (INRIX)
Navigation Coverage 45 countries and 11 million kilometres of road:
Andorra, Austria
Belgium, Bulgaria
Croatia, Czech Republic
Denmark
Estonia
Finland, France
Germany, Gibraltar, Greece
Hungary
Iceland, Ireland, Italy
Latvia, Liechtenstein, Lithuania, Luxembourg
Malta, Monaco
Netherlands, Norway
Poland, Portugal
Romania
San Marino, Slovakia, Slovenia, Spain, Sweden, Switzerland
Turkey
United Kingdom (incl. Northern Ireland), Ukraine
Vatican City

Additional connector roads for Albania, Belarus, Bosnia and Herzegovina, Macedonia, Moldavia, Serbia, Montenegro.
Voice Guidance Languages 29 languages:
Arabic
Bulgarian
Czech
Danish, Dutch
English (UK) Estonian
Finnish, Flemish, French
German, Greek
Hebrew, Hungarian
Italian
Latvian, Lithuanian
Norwegian
Polish, Portuguese
Romanian, Russian
Serbian, Slovakian, Slovenian, Spanish, Swedish
Turkish
Ukrainian

Bluetooth

Voice Recognition
Music Streaming
Additional Bluetooth Features Music streaming via A2DP & AVRCP 1.6
Phone book transfer
800 entries for each user (20 phones max.)
Siri
